To access: Mobile → Track, or click the Track icon on the Quick Access Panel.

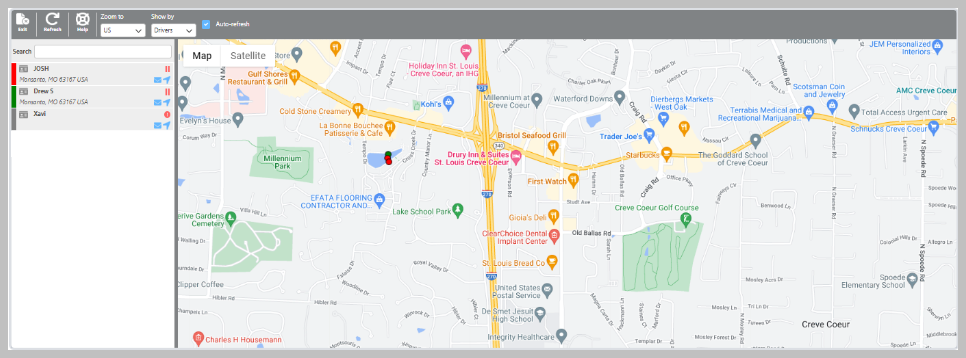

The Tracking window provides real-time information about the location and status of all drivers and assets.
Tracking Overview
The Tracking window is divided into the following areas:
|
Area |
Description |
|
Toolbar |
Contains view-level functionality for the tracking window. |
|
Search |
Filters the asset list to help you quickly find a specific asset. |
|
Show by |
Selects the asset type to display: Drivers, Trucks, or Trailers. |
|
Map |
Displays assets as clickable pushpins on a map. |
|
Map Icons |
|
|
|
The asset was stopped when the last GPS ping was received. |
|
The asset was in motion when the last GPS ping was received. |
|
|
This is the recency indicator. The indicator will be Green if the tracking data is recent The indicator will be red if the tracking data is not recent. |
|
|
Sends a message to the driver. Available only on the Drivers tracking page. |
|
|
Opens truck statistics for the selected asset. |
|
|
Drag and drop this icon onto the map to access street view. |
Note: If certain widgets or features are not visible, your user account may not have the required permissions. Contact your administrator to review your security settings.
Toolbar Functionality
|
Area |
Description |
|
Exit |
Closes the tracking window. |
|
Refresh |
Retrieves the most up-to-date tracking information from the server. |
|
Help |
Opens the online help page for this screen. |
|
Zoom |
Narrows the map view to a specific area. |
|
Show by |
Switches the asset list between Drivers, Trucks, and Trailers. |
|
Auto-Refresh |
Automatically updates the map every 15 minutes to reflect driver movement. |
|
Search |
Filters the asset list by Driver ID, Group ID, Device, or Truck. A minimum of 2 characters must be entered to begin filtering. The list will automatically update to show only matching assets. |
Assets List
Each row in the asset list displays the following information:
|
Field # |
Description |
|
1 |
The asset's last known location. |
|
2 |
The asset ID. |
|
3 |
Click to send a message to the driver. (Available when filtering by Drivers only.) |
|
4 |
Click to view detailed tracking information for the asset. |
|
5 |
GPS recency indicator. Green if the last ping was recent; red if the device has not sent a ping within the expected timeframe. |
|
6 |
Motion indicator. Appears when the GPS reports a speed greater than 0 mph, indicating the vehicle is moving. |
Ditat Tracking Video
